Typical application 1： Reactor (silo)
When there is no static electricity, the powder in the reactor (silo) is formed smoothly. If there is electrostatic charge accumulation, it is easy to form thick junction.
 | The Hellosun? electrostatic control system can effectively eliminate the classic accumulation, achieve alarm interlock in advance, and prevent danger and explosion. Applicable factory: LLDPE、HDPE、PP、ABS、EPS、PVC、BPA Products: HPS-80-C11 |

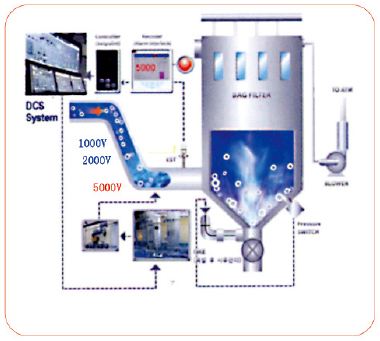

Typical application 2 : Bag Filter The powder moving into the bag type warehouse generates static electricity, which is easy to explode when combined with oxygen. The existing system is the post fire management system after the explosion. The Hellosun? products can remove the static electricity of the ignition source and prevent the danger and explosion in advance. Products: HPS-80-C11 |  |

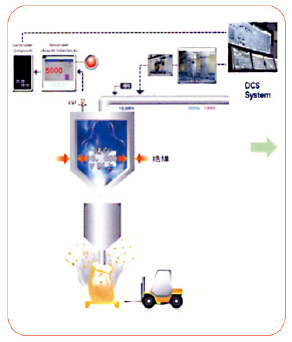

Typical application 3：Powder handling and packaging Due to insulation loading and unloading, several million volts of electrostatic voltage can be observed in the process of powder loading and unloading and warehouse loading, which can cause personal injury by electric shock, and easily cause dust explosion and fire in dangerous situations. Hellosun? electrostatic protection safety system can eliminate the accumulation of static electricity, prevent dangerous accidents, record and alarm interlock. Applicable factory: PP、ABS、PVC、PC、BPA and so on Products: HPS-80-C11 |  |

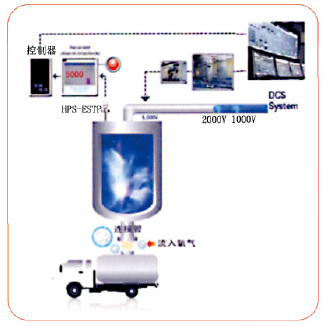

Typical application 4: Loading and unloading of tank cars When the storage tank is filled with nitrogen, the insulation is easy to produce high voltage electrostatic charge. When the connecting pipe is pulled up, oxygen is easy to enter and cause explosion. Hellosun? products can eliminate the accumulation of static electricity and prevent explosion. Product type Application products: -LLDPE-PP-LDPE-HDPE-EPS-ABS-BPA |  |

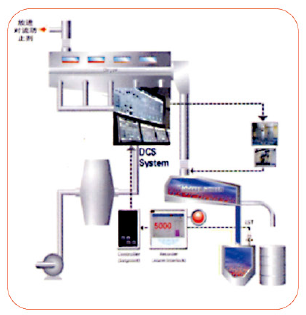

Typical application 5: Shaker screen The electrostatic charge accumulation can be eliminated by Hellosun? electrostatic elimination system without adding antistatic agent in traditional process. The product quality can be improved and the bad products caused by static electricity can be avoided. |  |

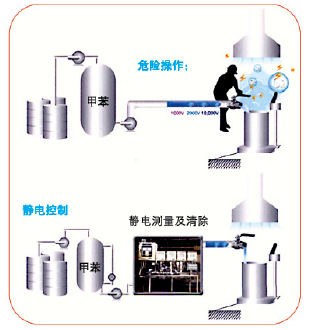

Typical application 6 When the flammable liquid is injected into the reactor, oxygen and volatile flammable substances are mixed into the reactor.
Application products: -toluene -benzene -high purity alcohol -volatility gas -explosion phosphide line. |  |
1. Electrostatic sensors
 | HPS-EST100 (Direct) -Power supply: 24VDC (LOOP Power) -Explosion proof rating: Exd IIC T6 -Output signal:4～20mA -Scope of application:—20KV～+20KV -Application: Reactor、Bag filter、Shaker screen、Powder handling and packaging -Common factory: LLDPE、PP、LDPE、HDPE、EPS、ABS、BPA |  | HPS-EST100 (Indirect) -Power supply: 24VDC (LOOP Power) -Explosion proof rating: Exd IIC T6 -Output signal:4～20mA -Scope of application:—20KV～+20KV -Flange specification: All suitable for flange installation、All pipes are prone to static electricity Application products: toluene、benzene、high purity alcohol、volatility gas、explosion phosphide handling line. |

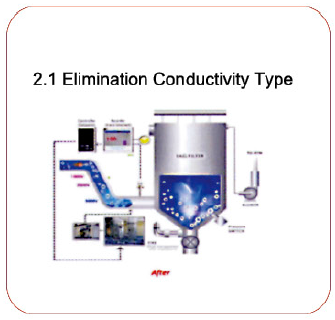

2.1 Powder Electrostatic Elimination Type: HPS-80-C11 Applications and media: pharmaceutical factories、gunpowder factories、gas stations、dangerous powder such as magnesium powder ,etc. LLDPE、PMA、EPS、BPA、PVC、fine chemical industry、chemical raw materials, etc. |  |

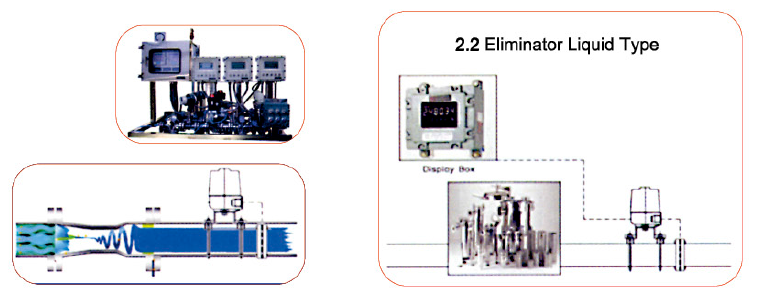

2.2 Liquid electrostatic eliminator Type: HPS-80-L21 Applications and media: toluene、benzene、high purity alcohol、volatility gas、explosion phosphide. |  |
The company adheres to European and American advanced technology and good management, with independent research and development, design team. The company is committed to the factory's explosion-proof safety, electrostatic control and design, marketing, service integration.
